溫度傳送器

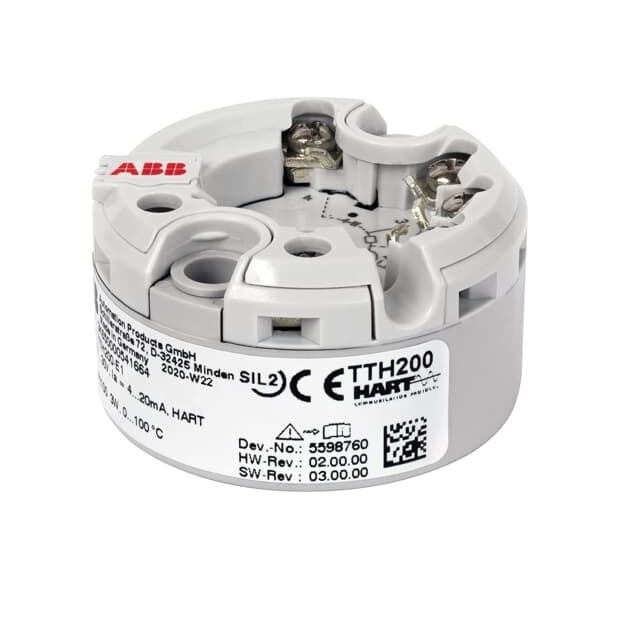

TTH200
TTH200
Head-mount temperature transmitter
詳細介紹
- Universal sensor input
- RTD, thermocouple, Ω, mV
- Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
- Various sensor error-calibration possibilities
- One point, two point, Callendar-van Dusen, freestyle characteristics with 32 supporting points
- Output signal
- 4 to 20 mA, HART 5 and HART 7 (switchable)
- Accuracy 0.1 %, long-term stability 0.05 % per year
- Wire break / corrosion monitoring in accordance with NE 89
- Device status signaling and freely configurable diagnostic categorization with diagnostic history according
to NE 107
- Event monitor for logging critical events
- Configuration monitor for configuration changes
- Turnable LCD indicator for optimal readability (option)
- Approvals for explosion protection
- ATEX, IECEx, zone 0
- FM / CSA
- EAC, EAC-Ex
- NEPSI
TTH200 原廠資訊連結
