可變面積式流量計
FGM1190
FGM1190

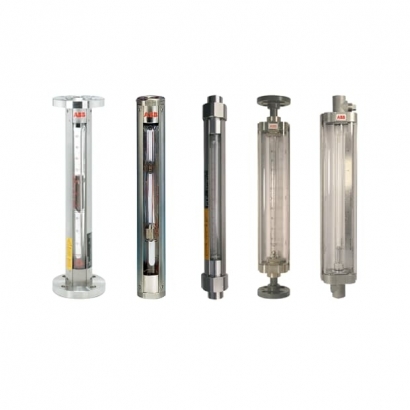

玻璃管可變面積式流量計
Glass tube variable area flowmeter
Glass tube variable area flowmeter
詳細介紹
基本規格:
►應用範圍
- 液體、氣體及蒸汽
►安裝方式
- 垂直管線安裝
►製程接續
- 1/4 in. to 2 in., threaded, DN 10 to DN 50 flanged, SC15 to SC50 hygienic (DIN11851), vertical
►流量範圍
- Water flows: 0.002 to 17600 l/h
- Flow turndown
- Typically 10:1
►操作壓力
- Up to 18 bar (261 lbf/in 2 g)
►操作溫度
- Up to 180 °C (356 °F)
►長度
- 100, 130 or 250 mm (4, 5 and 10 in.)
►測量精確度
- Class 1.6 to Class 6, depending on tube diameter and float type
►警報點
- Inert gas switches, up to 2 off
►測量管材質
- Borsilicat glass
►浮子材質
- Stainless steel, Glass, Sapphire, Carboly, PVC, Tantalum, HastelloyTM, Aluminium, PTFE
►保護套材質
- Stainless steel, PVC, PVDF
FGM1190 原廠資訊連結
