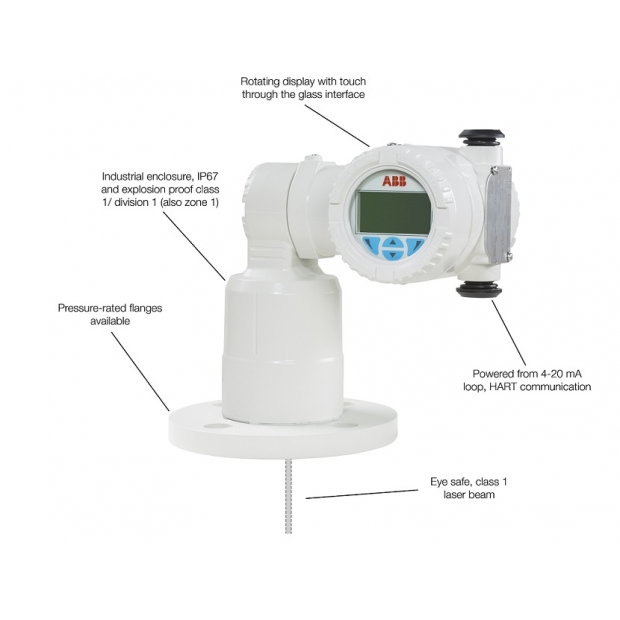

基本規格:
►測量範圍
- 液體 0.5 to 30 m (2 to 100 ft)
- 粉粒體 0.5 to 100 m (2 to 330 ft)
- 定位測量應用 0.5 m to 200 m (2 ft to 660 ft)
►解析度
- 5 mm (0.2 in)
►精確度
- ±11 mm (0.4 in)
►發射波
- 雷射波長: 905 nm, eye safe, Class 1
►雷射波發射角度
- < 0.35°
►操作條件
- 操作溫度

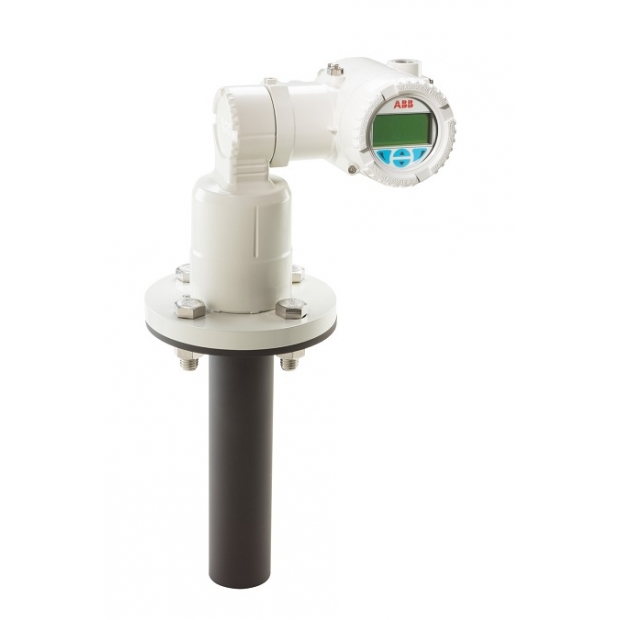

- –40° to +80°C (–40 to +140°F), 安裝冷卻管(選配)可達280°C (535°F)
- 儲存溫度
- –40 to +85°C (-40 to +185°F)
- 操作壓力
- 基本形式: –1 to +2 bar (29 psi)
- 衛生形式: –1 to +1 bar (15 psi)
- 高壓形式: –1 to +49.6 bar (719 psi)
輸出信號
- 4 to 20 mA, NAMUR compliant
- HART 7 (multi-variable output)
- Local HMI, EDD/DTM, handheld
電源供應
- 兩線式電源供應 4 to 20 mA, 16 to 42 V DC
- 電熱玻璃視窗(選配) 24 V DC (3W)
外型簡介
►外殼材質
- Powder coated aluminum (standard), 316L stainless steel (option)
►尺寸
- Universal - flat flange W 247 x H 215 x D 165 mm (9.7 x 8.5 x 6.5 in.)
- Class 150 - raised flange W 240 x H 242 x D 154 mm (9.5 x 9.5 x 6.1 in.)
- Class 300 - raised flange W 247 x H 242 x D 165 mm (9.7 x 9.5 x 6.5 in.)
- DIN PN 16 - raised flange W 247 x H 242 x D 165 mm (9.7 in x 9.5 x 6.5 in.)
- DIN PN 40 - raised flange W 247 x H 242 mm x D 165 (9.7 x 9.5 x 6.5 in.)
- Hygienic flange W 223 x H 215 x D 137 mm (8.8 x 8.5 x 5.4 in.)
►標準型重量
- Aluminum enclosure with universal aluminum flange: 3.7 kg (8.2 lb)
- 316L SST enclosure with universal stainless steel flange: 8.6 kg (19.0 lb)
►高壓型重量
- Aluminum enclosure: 6.7 to 7.2 kg (14.8 to 15.9 lb), depending on flange
- 316L SST enclosure: 10.0 to 10.5 kg (22.1 to 23.2 lb), depending on flange
►衛生級重量
- Aluminum enclosure: 5.8 kg (12.8 lb)
- 316L SST enclosure: 9.1 kg (20.1 lb)
►防水防塵等級
- IP66 / IP67/ Nema 4 (SS version 4X)
►安裝方式

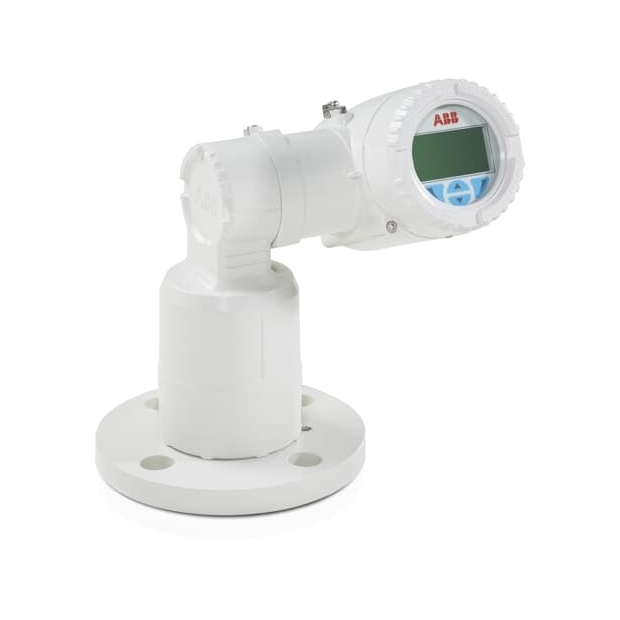

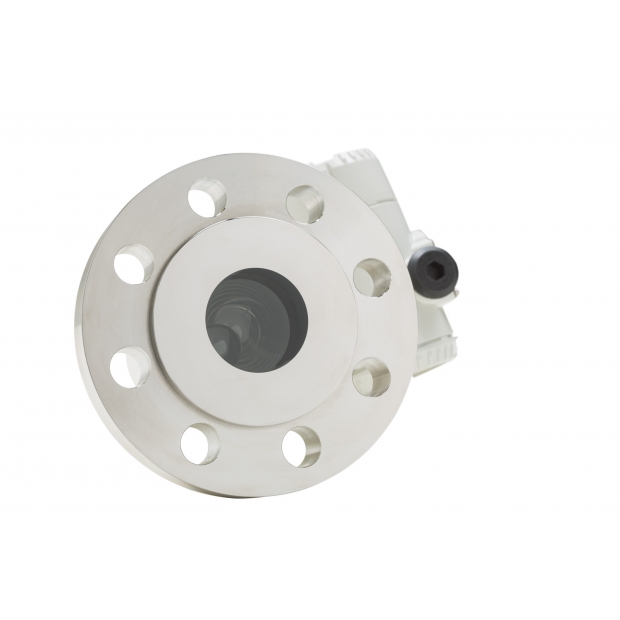

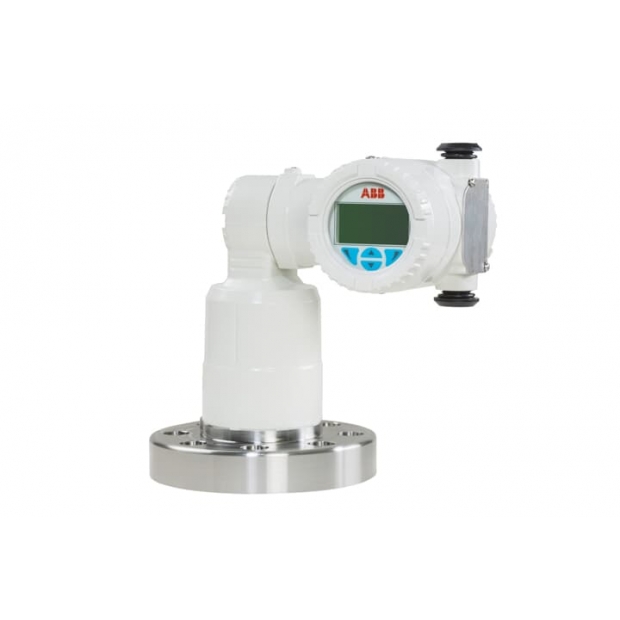

- Flange (ASME 2”, DN50)

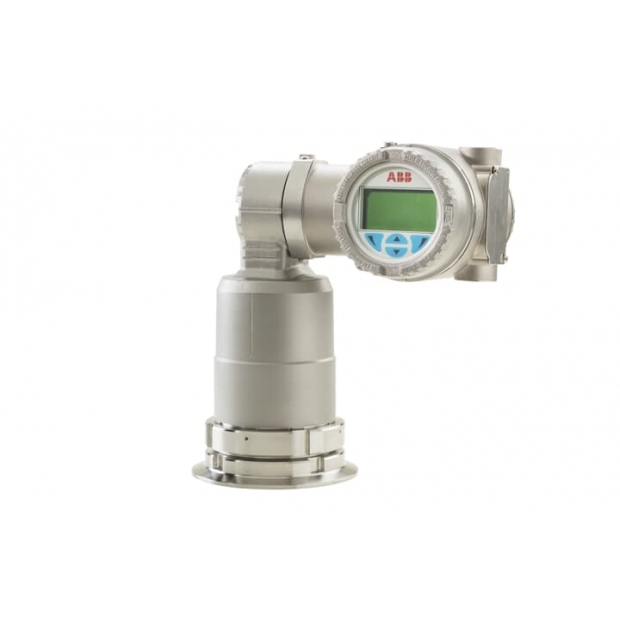

- Hygienic fitting / tri-clamp 4 in. (ISO2852)
►接液部材質
- Aluminum, cemented borosilicate window (base model)
- 316L SST, cemented borosilicate window (base model, hygienic model)
- 316L SST, fused borosilicate window (high pressure models)
操作
►螢幕顯示
- Integrated 128x64 pixels LCD display with TTG (Through-The-Glass) interface
►軟體特點
- 容積計算, 延遲時間, 濾波, 訊號門檻/警報, 使用者自行定義顯示方式(with HMI)
►防爆認證
- CE, ATEX, IECEx, FM, 3A
