翻板式液位計
KM26
KM26

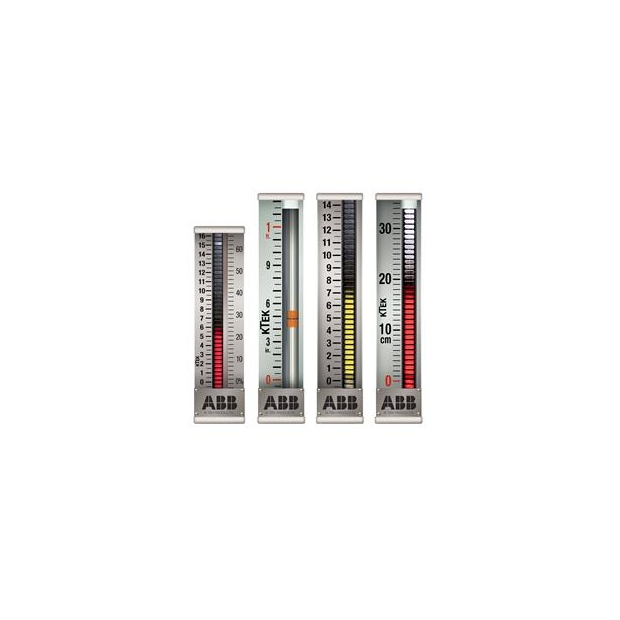

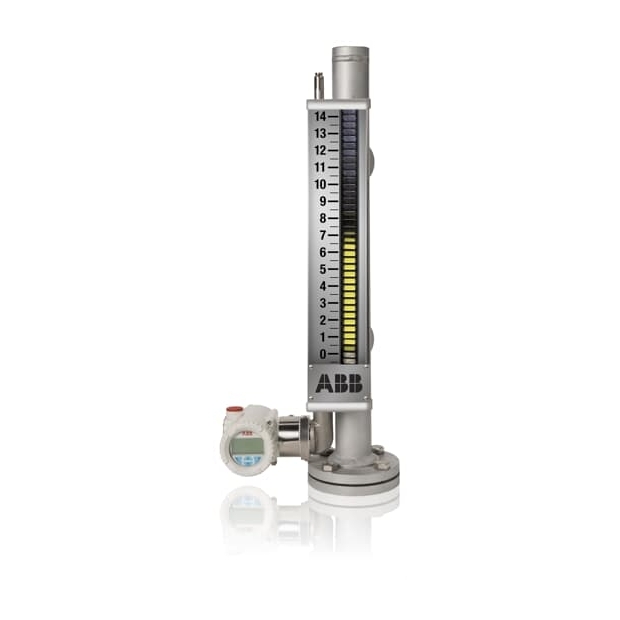

Magnetic level gauge
詳細介紹
- Available materials
- Stainless steel—304/304L, 316/316L, 317/317L, 321, 347, 904
- Alloy 20
- Hastelloy®—B, C-276
- Alloy 600, 625, 800, 825
- Titanium
- Teflon® (registered trademark of DuPont) coated stainless steel
- Fiberglass—epoxy or vinyl ester resin
- PVC, CPVC, Kynar®
- Polypropylene
- Zirconium
- Monel
- For other materials consult factory
- Process capabilities
- Full vacuum to 5000 PSI / 345 BAR
- -320 to 1000 °F/ -196 to 538 °C
- 0.25 specific gravity
- All liquid viscosities
- Interfaces as Low as .03 ΔSG
- Testing and documentation available upon request
- Radiographic examination
- Liquid dye penetrant examination
- Hydrostatic examination
- PMI (Positive Material Identification) material certification
- ASME “U,” “UM,” or “S” stamp
- Third party inspection
- Material Certificates
- ANSI/ASME B31.1, B31.3
- PED certification
- NACE MR0103, NACE MR0175
- Canadian registration number (CRN)
- Marine and industrial type approval for high-pressure boilers
- Mechanical Function Test
- Float Curves (Total Level only)
